Real-time analysis with multi-task processing, no data bottlenecks.
0.03s Ultra-Fast Detection
Hardware-accelerated imaging with instant defect recognition.
20MP Resolution · Subpixel Accuracy
Detects 20?μm defects on glossy or diffuse surfaces with ease.
Compact Fanless Design for Cleanroom Precision
Low power, zero vibration, and maintenance-free—built for high-precision environments like semiconductor lines.
Detects dents, pits, fine scratches, discoloration, tool marks, and more.
Specifications | |||
Resolution(px) | 8.1M (2856 x 2848) | 16.2M (5328 x 3040) | 20M (4512 x 4512) |
Image Scale | 1:1 | 16:9 | 1:1 |
CMOS Size | 2/3" | 1.1" | 1.1" |
CMOS Type | Monochrome CMOS | ||
Exposure Type | Global Shutter | ||
Unit Cell Size | 2.74μm x 2.74μm | ||
Framerate of whole Cycle*1 | ≤11 FPS | ≤7 FPS | ≤5 FPS |
Light Interface | Multispectral Partition Light interface : 20 Pin Plug x1 | ||
Lens Mount | C-Mount | ||
Data Interface | USB3.0 | ||
Operating Voltage/Current | 24V/5A | ||
Input/Output Signal | Two channel Nonpolar Level Signal Input/Switchable Signal Output(12/24V Compatible) | ||
SDK Operating System | Windows 7、8、10、11 | ||
SDK Platform | C / C++ / C# | ||
Dimension(LxWxH) | 138.5mm x 120mm x 52.3mm | ||
Weight | 680g | ||
*1 Whole cycle: refers to the time from the beginning of exposure to the end of data transmission; 50EXPI, 50 Exposure Intensity, fast algorithm mode, three output channels (Kd,Nx,Ny);
| Multispectral Partition Light | MPD-RL-150 | MPD-RL-274 | MPD-XL-500 | MPD-XL-750 | MPD-XL-1000 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Light | Multispectral Partition Light Diffuse Light | Multispectral Spot Light Direct Light | |||||||||
| Light Angle α | 0° | 12° | |||||||||
| Color Wavelength Peak, Current 150mA | Red: 625nm; Blue: 460nm; Green: 525nm; Infrared: 940nm; UV: 375nm White: 6500K-7000K (standard color temperature) | ||||||||||
| Power Supply | Camera | ||||||||||
| Number of lamp beads | R/G/B | 56 | 96 | 192 | |||||||
| Infrared Light | 104 | 96 | 192 | ||||||||
| Ultraviolet Light | 48 | 96 | 192 | ||||||||
| Drive Current | Monochrome 8-zone all bright: 1.2A Monochrome single-zone: 0.15A Total current ≤ 6A | Monochrome 8-zone all bright: 2.4A Monochrome single-zone: 0.3A Total current ≤ 6A | Monochrome 8-zone all bright: 4.8A Monochrome single-zone: 0.6A Total current ≤ 6A | ||||||||
| Voltage | 24V | ||||||||||
| Control | Camera | ||||||||||
| Setting | 4/8 Partition Exposure | ||||||||||
| Service Life(hrs) | 15000~50000 (* No attenuation within 15000 hours, with 50000 hours being the theoretical lifespan) | ||||||||||
| Recommended FOV（WxH,mm) | <80x80 | <160x160 | <300x300 | <400x400 | <600x600 | ||||||
| Dimension（LxWxH,mm） | 150x150x20 | 274x274x30 | 500x500x28 | 750x750x28 | 1000x1000x28 | ||||||
| Weight(kg) | 0.3 | 1.3 | 3.3 | 3.7 | 4.1 | ||||||
Accurately detects dents, scratches, cracks, and foreign particles on wafers, coated glass, and more.
Specifications | |||
Resolution(px) | 8.1M (2856 x 2848) | 16.2M (5328 x 3040) | 20M (4512 x 4512) |
Image Scale | 1:1 | 16:9 | 1:1 |
CMOS Size | 2/3" | 1.1" | 1.1" |
CMOS Type | Monochrome CMOS | ||
Exposure Type | Global Shutter | ||
Unit Cell Size | 2.74μm x 2.74μm | ||
Framerate of whole Cycle*1 | ≤2 FPS | ≤1.85 FPS | ≤1.6 FPS |
Light Interface | Programmable screen light interface Mini HDMI x 1 | ||
Lens Mount | C-Mount | ||
Dimension(LxWxH) | 138.5mm x 120mm x 52.3mm | ||
Weight | 680g | ||
1. Whole cycle: refers to the time from the beginning of exposure to the end of data transmission; 500EXPI, 50 exposure intensity, XY dual cycle, output three channels (Gray,PhaseX,PhaseY), screen light refresh rate 120hz.
Programmable Screen Light | Screen Size | Dimension(LxWxH） | Weight | Resolution | Refresh Rate | Response Time | Brightness | Power Supply | Control | Interface Type |
7" | 166.9mmx103.2mmx11.3mm | 0.17kg | 1920*1080p | 120hz | 4ms | 500cd/㎡ | USB Powered | Camera Synchronized Control | Mini HDMI | |
10.1" | 232mmx157mmx12mm | 0.3kg | 1920*1080p | 60hz | 5ms | 450cd/㎡ | Mini HDMI | |||
15.6" | 355mmx255mmx5.2mm | 0.85kg | 2560*1440p | 144hz | 1-2ms | 400cd/㎡ | Mini HDMI | |||
17" | 378mmx249mmx4mm | 0.96kg | 2560*1600p | 144hz | 2-4ms | 500cd/㎡ | HDMI | |||
27" | 613.4mmx365.8mmx60mm | 5.3kg | 3740*2160p | 165hz | 1ms | 450cd/㎡ | Power Adapter | HDMI | ||
31.5" | 720mmx424mmx40mm | 6kg | 2560*1440p | 240hz | 1ms | 300cd/㎡ | HDMI |
Coaxial Programmable Screen Light Kit | Dimensions (L×W×H) | Weight | Programmable Light Screen | Phase Bias Optical Glass Size | Light Angle | Power Supply Method | Control Method | Recommended Field of View (W×H) |
120mm x 115mm x 200mm（含相機支架） | 1.4kg | MPD-S-PK7H | 100mm x 100mm x 2mm | 90° | USB Powered | Camera Synchronized Control | 40mm x 40mm | |
279mm x 192mm x 346.5mm（含相機支架） | 3.7kg | MPD-S-TPZ | 230mm x 170mm x 2mm | 0° | 120mm x 68mm | |||
420mm x 230mm x 495mm（含相機支架） 400mm x 250mm x 500mm（含相機支架，LC） | 8.6kg | MPD-S-Q1G | 280mm x 222mm x 2mm | 0° | 100mm x 60mm/160mm x 90mm(LC) | |||
| MPD-SL-17 | 254mm x 220mm x 430mm | 4.5kg | MPD-S-AQ17H | 278mm x 244mm x 2mm | 90° | 100mm x 100mm | ||
| MPD-SL-700 | 732mm x 410mm x 650mm（含相機支架） | 20kg | MPD-S-DX3 | 440mm x 440mm x 2mm | 0° | Power Adapter | 185mm x 104mm |
Triangular Programmable Screen Light Kit | Dimensions (L×W×H) | Weight | Recommended Field of View (W×H) | Programmable Light Screen | Power Supply Method | Control Method |
| 610mm x 450mm x 160mm | 9.27kg | 300mmx150mm | MPD-S-AG27 | 電源適配器 | 相機同步控制 |

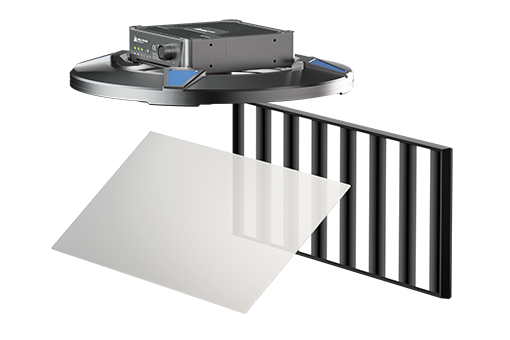

Hybrid Data Camera DH Series
Dual-Mode DH Series for All Surface Types
Switch between Photometric Stereo and Phase Deflectometry to inspect diffuse, specular, and reflective surfaces with ease.
Specifications | ||||||
| Resolution(px) | 8.1M (2856 x 2848) | 16.2M (5328 x 3040) | 20M (4512 x 4512) | |||
| Image Scale | 1:1 | 16:9 | 1:1 | |||
| CMOS Size | 2/3" | 1.1" | 1.1" | |||
| CMOS Type | Monochrome CMOS | |||||
| Exposure Type | Global Shutter | |||||
| Unit Cell Size | 2.74μm x 2.74μm | |||||
| Framerate of whole Cycle*1 | Photometric Stereo *2 | ≤11 FPS ≤40 FPS (Binning) | ≤7 FPS ≤26 FPS (Binning) | ≤5 FPS ≤18.5 FPS(Binning) | ||
| Phase Measuring Deflectometry*3 | ≤2 FPS ≤3.5 FPS (Binning) | ≤1.85 FPS ≤3.3 FPS (Binning) | ≤1.6 FPS ≤3.2 FPS(Binning) | |||
| Light Interface | Multispectral Partition Light interface : 20 Pin Plug x1 | |||||
| Programmable screen light interface Mini HDMI x 1 | ||||||
| Four-channel standard light source interface (3-Pin, camera synchronization exposure, 4 overall current ≤ 6A) | ||||||
| Lens Mount | C-Mount | |||||
| Dimension(LxWxH) | 138.5mm x 120mm x 52.3mm | |||||
| Weight | 680g | |||||
1. Whole cycle: refers to the time from the beginning of exposure to the end of data transmission;
2. 50EXPI, 50 Exposure Intensity, fast algorithm mode, three output channels (Kd,Nx,Ny);
3. 500EXPI, 50 exposure intensity, XY dual cycle, output three channels (Gray,PhaseX,PhaseY), screen light refresh rate 120hz.
Light
Please refer to "Multispectral Partition Light " , "Coaxial Programmable Screen Light Kit" , "Programmable Screen Light" , "Half Mirror" and "Triangle Programmable Screen Light Kit" .
Lens
Lens | ||||
Lens Type | FA Lens | |||
Lens Mount | C-Mount | |||
Focal Length | 25mm | 35mm | 50mm | 16mm |
Fno | F1.8~16.0 | F1.8~16.0 | F2.0~16.0 | F4.0 |
CMOS Size | 1.1" | 19.2mm/1.2" | 19.2mm/1.2" | 1" |
Unit Cell size | 2.2μm | 3.50μm | ||
Resolution | 200lp/mm | 150lp/mm | ||
WD | 500mm-70mm | 600mm-150mm | 600mm-150mm | 550mm-150mm |
Magnification (X) | 0.06-0.306 | 0.058-0.236 | 0.083-0.371 | 0.03-0.09 |
Lens | |
Lens Type | Approximate Telecentric Lens |
Lens Mount | C-Mount |
Fno | F6.5 |
DOF | 28.8mm |
CMOs Size | 2/3" |
Unit Cell size | 2.15μm |
Object-space Resolution | 28.6um |
O/I | 428.1mm |
WD | 359土3%mm |
Magnification (X) | 0.15 |
Object FOV | ф73.3mm |
Image FOV | ф11mm |
*Recommended lens specifications: Unit Cell Size≤2.74μm, lens COMS size ≥ camera CMOS size, C-Mount interface.
